DADCO Hydraulic Core Pin Cylinders

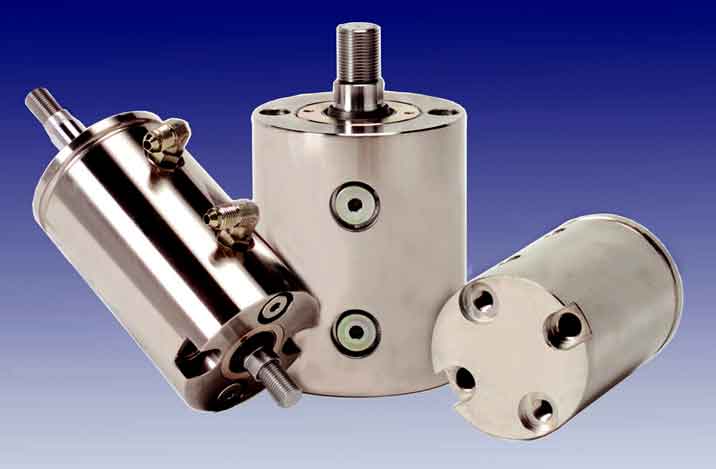

DADCO's DK Series Hydraulic Core Pin Cylinders are designed specifically for use in plastic injection molds.  Constructed with a one-piece round steel body DADCO's DK Series can be quickly installed into cored pockets within the mold, making them an ideal replacement for bulky, square head, tie-rod style hydraulic cylinders.

Compact size, numerous porting options, including convenient rear porting, and an optional non-rotating model are additional features that further illustrate the innovative design of DADCO's DK Series Hydraulic Core Pin Cylinders.




Constructed with long-lasting, high-temperature seals as standard, the Core Pin Cylinder can withstand temperatures inside plastic molds of up to 204°C (400°F) for constant duty and up to 260°C (+500°F) for short durations.

The Core Pin Cylinder offers numerous porting advantages in addition to convenient, versatile mounting options. Standard stroke lengths are 13, 25, 50, 80, and 100 mm (Nom. .5”, 1”, 2”, 3”, 4”). Various male and female rod end styles are available.




Click here for application examples

 DADCO’s Core Pin Cylinder is optionally available in a non-rotating model for use in applications where the rod controls the core pin orientation. This model is available in 13 and 25 mm (Nom. .5” and 1”) stroke lengths. The Core Pin Cylinder may also be supplied with a double rod end. The body length is the same as the standard model. To view dimensions click any of the following sizes:  ø40mm Cylinder, ø40mm Double Rod End Cylinder, ø50mm Cylinder, ø50mm Double Rod End Cylinder


For enquiries, Contact GW Technologies here.
