Lamina Pins and Bushings

Pins and Bushings

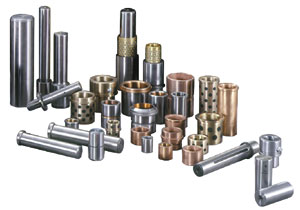

Lamina manufactures straight and demountable ball bearing pins, bushings and retainers of all sizes that are precisely ground and thoroughly checked with modern instruments to assure complete interchangeability and eliminate the necessity of select fitting.



  • Short Shoulder Die Bushings
  • Standard Shoulder Die Bushings
  • Long Shoulder Die Bushings
  • Extra Long Shoulder Die Bushings
  • Precision Die Bushings
  • Ball Bearing Die Bushings
  • Keyless Ball Bearing Die Bushings
  • Guide Bar Die Bushings
  • Bronze Plated Die Bushings
  • Solid Steel Die Bushings
  • Solid Bronze Die Bushings
  • Self Lubricating Die Bushings
  • Straight Bushing
  • Running Fit Bushing
  • Heat Treated Running Fit Bushing
  • Non-Heat Treated Running Fit Bushing
  • Self Lubricating Bushings
  • Guide Bushing
  • Steel Guide Pins and Posts
  • Straight Guide Pins
  • Press Fit Guide Pins
  • Removable Guide Pin
  • Demountable Guide Pin
  • Ball Bearing Guide Pin
  • Keyless Ball Bearing Guide Pin
  • Mold Pins
  • Leader Pins
  • Ball Bearing Components
  • Keyless Ball Bearing Components

LamGlide™ Bushings - New!

The LamGlide™ bushing is a premium bushing designed for the most demanding applications. Its unique patented liner provides superior wear resistance over bronze and steel. The LamGlide™ bushing is maintenance free and operates burr and wear filing free. It can be used anywhere linear or vertical motion is required.

LamGlide™ bushings have outstanding physical, mechanical and chemical properties that include lightweight material, self-aligning, dimensional stability, tolerance to edge loading, and resistance to chemical attack. resistance.

Stress Test Comparison
LamGlide™ vs other bushings

Description: Various bushing makes were field tested on the same Lift Mechanism within a Progressive Die. Operators did not lubricate the bushings.
Bushing Types Field Test Life Cycle
NO LUBRICATION after installation
Hardened Steel Drill Bushing * failure after 10,000-20,000 cycles
Bronze Self-Lubricating Bushing * failure after 50,000-60,000 cycles
LamGlide™   greater than 1.8 million cycles
(no failure yet)

*Note - with regular lubrication & maintenance, life of bushing is significantly increased.

Conclusion: LamGlide™ Bushings are ideal for high-stress production environments where operators do not lubricate the bushings at regular intervals or where lubricant contamination, debris or byproducts are undesirable.

Applications

  • Aerospace
  • Medical Equipment
  • Automation
  • Tool & Die
  • Metal Stamping
  • Production Machinery
  • Farm Equipment
  • Consumer Goods
  • Sports and Fitness Equipment



The LamGlide™ bushing is available in standard sizes from 3/4 to 3 inch and metric sizes (from 18 mm to 80 mm). Custom sizes are available. Internal diameters will be manufactured in accordance with Lamina's Class 3 tolerance grade unless otherwise specified.

Ball Bearing Components

Standard Ball Bearing Components

Ball Bearing Components Pins and Bushings

A complete line of ball bearing components in both imperial and metric sizes is available. Stock bushing and retainer sizes are available to accommodate pins of up to 3 inch diameter and 20 inches in length. Lamina ball retainers are made from a heat treated aluminum alloy that combines lightness and strength. Ball bearings are placed in retainers in an off-line radial pattern that offers optimum life in high or low speed presses.

Keyless Ball Bearing Components

Lamina now offers Keyless Ball Bearing Components including: retainers, bushings and pins. The Keyless Ball Bearing Components are completely interchangeable between components and do not need to ship as matched sets. No select fitting required. Guaranteed to be completely interchangeable. Lamina Keyless components will retrofit or interchange with existing standardized systems in the marketplace.

Lamina has over 500 ball bearing components to choose from including precision ball bearing retainers, straight sleeve bushings, demountable shoulder bushings, straight guide posts, demountable guide posts, ball bearing bushings and ball bearing pins.



Die Components

A complete line of die pins and die bushings with over 1,000 product items are available. Bushings are available in the following material choices: bronze plated steel , aluminium bronze, bronze self-lubricating and steel. Class 1, class 2 and class 3 fit tolerances are available. Bushings are available in sizes to accommodate pins of up to 4½ inch diameter and 30 inches in length.

Self Lubricating Die and Mold Bushings

Die Components include shoulder bushings, guide bar bushings, precision bearings, running fit bushings, straight type guide pins, shoulder type guide pins, removable type guide pins, stripper guide pins and bushings, NAAMS guide bushings, NAAMS pad bushings, NAAMS guide posts, demountable guide pins, and metric short/standard/long/extra long guide pins.

Mold Pins and Bushings

Ejector Bushing

Lamina's mold pins and bushings range features shoulder bushings, straight bushings, ejector bushings and leader pins. Bushings are available in bronze plated, hardened steel, self lubricated styles in both metric and imperial sizes. Precision-ground steel leader pins are available in both imperial and metric sizes.

For enquiries, Contact GW Technologies here.
