Core Pin Dimensional Drawings

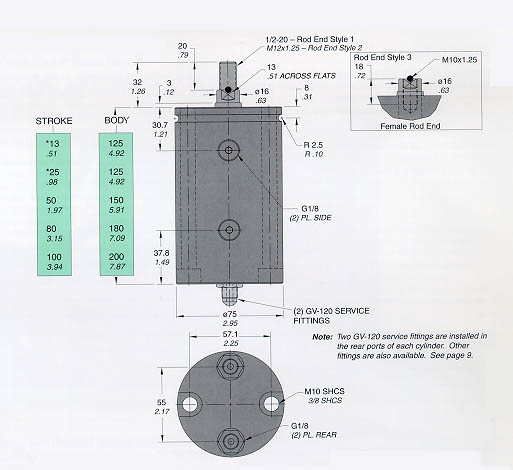

  ø40 mm Core Pin Cylinder

Back to core pin cylinders

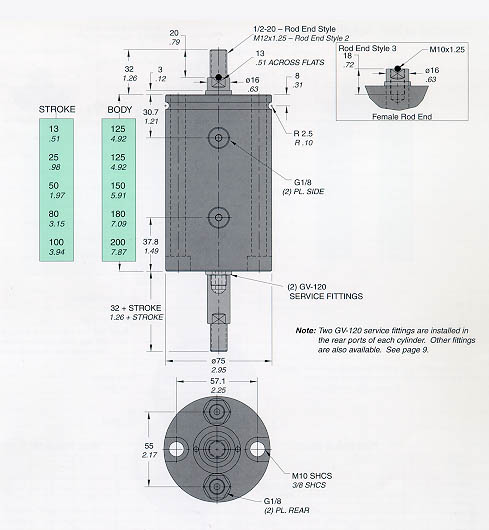

  ø40 mm Double Rod End Cylinder

Back to core pin cylinders

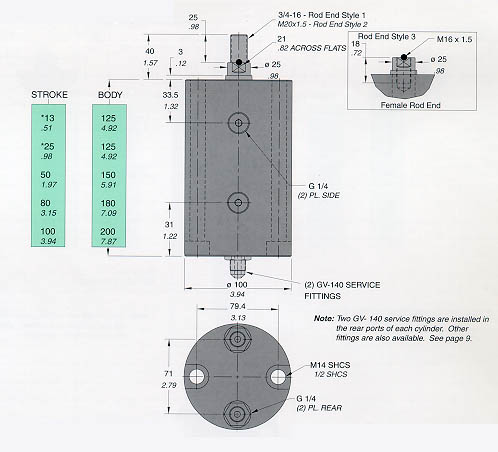

  ø50 mm Core Pin Cylinder

Back to core pin cylinders

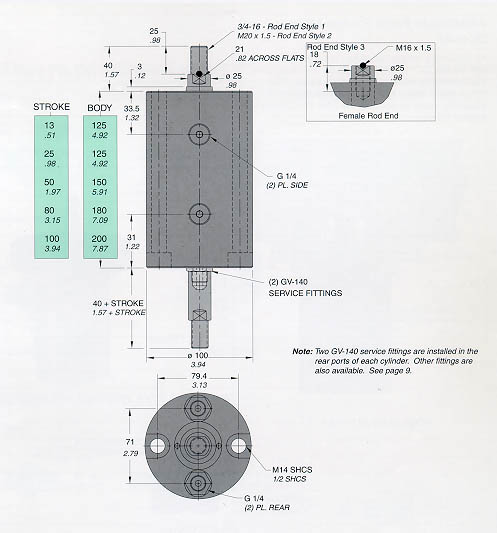

  ø50 mm Double Rod End Cylinder

Back to core pin cylinders
