DADCO Nitrogen Springs
GW Technologies is the authorised Australian distributor for DADCO
nitrogen gas springs. We carry an extensive range of stock and can
supply most models next business day. GW Technologies offers application
and design advice and a regassing and repair service for DADCO products.
DADCO was the first company to produce top quality self-contained
nitrogen gas springs at a competitive price and with superior customer
service. Founded in 1958, DADCO is now the highest volume producer of
gas springs for press tools.
DADCO manufactures a variety of gas springs in force models from
10 lb to 20 tons of force on contact. Sizes range from 1/2" to 6" in
diameter.
DADCO gas springs may be operated as self-contained or linked.
When operated as a linked system, adjustment, monitoring, draining and
refilling can be performed from outside the die. DADCO offers a variety
of accessories including hose, fittings and control panels that are used
to connect gas springs together as a linked system.
Through extensive testing and field experience, DADCO has proven to
manufacture reliable, low maintenance nitrogen gas springs. DADCO's
exclusive One Year/One Million Stroke
Gold Guarantee™
backs the Micro Series, LJ Series (90.7), Compact
High Tonnage 90.9 Series and the Large 90.10/90.5B Series nitrogen gas
springs. DADCO offers a new 2 year / 2 million stroke Select
Guarantee™ on the L Series (90.3) nitrogen gas springs.
*Click
here for
Frequently Asked Questions about DADCO Nitrogen Springs*
| |
Body Diameter: |
Force on contact: |
|
Micro Series |
12mm, 19 mm, 25 mm, 32 mm |
From 4.5kg to 310kg |
|
FCL Series |
44.5mm, 50mm |
From 30kg to 471kg |
|
Ultra
Force Series |
19mm, 32mm, 38mm, 50mm, 63mm,
75mm, 150mm |
175kg, 370kg, 510kg,1070kg, 1530kg,
2440kg, 9680kg |
|
LJ Series (90.7) |
38 mm, 44.5 mm, 50 mm |
300kg, 500kg, 750kg
|
|
L Series (90.3) |
38 mm, 44.5 mm, 50 mm |
300kg, 500kg, 750kg |
|
Compact 90.5B |
50 mm, 75 mm, 95 mm, 120 mm |
750kg, 1500kg, 3000kg,
5000kg |
|
Compact High Tonnage 90.9 Series |
75 mm, 95 mm, 120 mm, 150 mm |
1500kg, 3000kg, 5000kg,
7500kg |
Large Gas Springs
90.10 Series |
44.5 mm, 50 mm, 75 mm, 95
mm, 120 mm, 150 mm, 195 mm |
500kg, 750kg, 1500kg,
3000kg, 5000kg, 7500kg, 10000kg |
|
Super Compact SC Series 98.80 |
25 mm, 38 mm, 50 mm, 75 mm,
90 mm, 120 mm, 150 mm |
420kg, 1000kg, 1800kg,
4700kg, 7500kg, 11800kg, 18300kg |
|
|
Micro Series Gas Springs
NEW!! Micro 45 Model (1/2" body diameter)
DADCO’s
patented Micro Nitrogen Gas springs are the ideal
replacement for conventional coil springs. Their consistent,
reliable force makes them the perfect choice for use in
metal stamping; general tool work, such as jigs and
fixtures; machine components, and plastic injection moulding.
Dimensions are available:
Micro 45,Micro
90,
Threaded Body Micro,
Micro 180,
Micro 250 |
|
|
Ultra Force™
Gas Springs
DADCO's
Ultra Force™
gas springs are available in four force models:
-
U.0175
(380lbs/175kg, 19mm body dia);
-
U.0400 (0.33ton/370kg, 32mm body dia);
-
U.0600 (0.5ton/510kg, 38mm body dia); and
-
U.1200 (1.2ton/1070kg, 50mm body dia);
-
U.1600 (1.6ton/1530kg, 63mm body dia);
-
U.2600 (2.6ton/2440kg, 75mm body dia);
-
U.9600 (10.7ton/9680kg, 150mm body dia);
These compact springs provide high force in low profile body
cylinders. The Ultra
Force™ incorporates
DADCO's exclusive UltraPak™ cartridge technology. The
UltraPak™ cartridge is comprised of a superior bearing and
seal to extend the gas spring life and provide excellent
wear characteristics.
Dimensions are available:U.0175,U.0400,U.0600,U.1200,U.1600,U.2600,U.9600 |
|
|
LJ Series
Miniature Gas Springs
DADCO’s
LJ Series gas springs are available in three force models:
1/3 ton, 1/2 ton and 3/4 ton. Providing more force in less
space, the 1/3 ton model is 20 mm shorter than the L Series
1/3 ton model, the 1/2 ton model is 18.5 mm shorter than the
L Series 1/2 ton model, and likewise the 3/4 ton model is
12.5 mm shorter than the L Series 3/4 ton model. Dimensions
are available:
LJ 300,
LJ 500,
LJ 750 |
|
|
L Series
Miniature Gas Springs
DADCO
offers a range of options for stampers of small metal parts
and injection moulders with tight space restrictions. The L
Series gas springs are available in three force models: 1/3
ton, 1/2 ton, and 3/4 ton force on contact. With a uniform
height of 2" + 2 x stroke these gas springs can be designed
in easily and interchanged when necessary. Dimensions are
available:
L
300,
L
500,
L
750 |
|
|

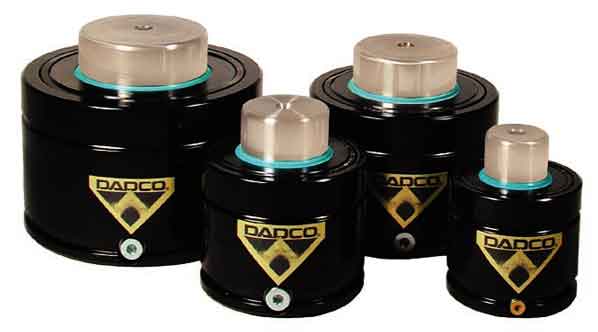

90.9
Series Compact High Tonnage Gas Springs
DADCO's
90.9 Series is the smallest high-tonnage nitrogen gas spring
series available. Smaller than ISO Standard Nitrogen Gas
Springs by as much as 3" (75 mm), the 90.9 Series delivers
forces ranging from 1.5 ton to 8 tons. Dimensions are
available:
90.9.01500,
90.9.03000,
90.9.05000,
90.9.07500. |
|
|

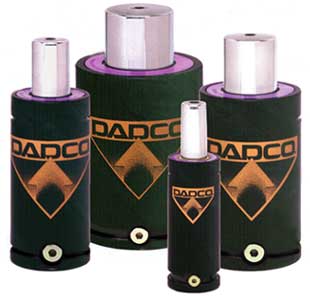

This
compact series delivers forces from 3/4 ton to 8 tons on
contact. The 90.5B Series has the capability to be operated
in either a self-contained system or a linked system.
Dimensions are available:
90.5B,
90.5B.07500 |
|
|
DADCO's
full height 90.10 Series is based on the ISO standard, and
delivers forces from 1/2 ton to 10 tons on contact. The
90.10 Series can be operated in either a self-contained
system or linked system. Dimensions are available:
00500,
00750,
01500,
03000,
05000,
07500,
10000 |
|
|
DADCO's
Super Compact Series is ideal for applications that require
high force and short stroke lengths. With stroke lengths
ranging from 6 mm to 50 mm, and diameters ranging from 25 mm
to 150 mm, the Super Compact Series provides more force in
less space by providing up to 20 tons of force on contact.
The Super Compact can be operated in both self-contained or
linked systems. Dimensions are available:
SC-00420,
SC-01000 - SC-18300 |
|
For enquiries, Contact GW Technologies
here.
|
