GW Technologies is the Australian distributor for Pax in-die lubrication systems. Pax is the pioneer of in-die lubrication.  Since 1980, Pax Lube Systems have been giving stampers the opportunity to be more productive.  The Pax system was designed and manufactured by skilled tool and die craftsmen and tested in the Pax stamping facility.  Through the use of the Pax Lube System, production speeds increase, part quality improves, die life is  extended, and lube consumption is decreased.

The Pax Lube Systems are  a "pre-pressurized" airless spray system - lubricant is supplied to a manifold under pressure providing a constant and consistent supply of lubricant. As long as there is a supply of lubricant in the reservoir, there will always be lubricant available at the distribution pumps.  This also means that the distribution pumps work more efficiently because no priming is required. The "airless" spray mechanism means that the air feed used to drive the pump system is completely separate from the lubricant circuit.

Lubricant is not mixed with air and atomised for spraying, with the result that overspray is kept to negligible levels and  hazardous "misting" of lubricant in the pressroom is eliminated. Lubricant is distributed only to where it is needed in the die, with dramatically improved worker safety and pressroom compared to conventional spray systems.



Features:

  • Pre-Pressurized System

  • Air-Driven Diaphragm Pump with Filter (air circuit is separate from lubricant circuit)

  • Stainless Steel Tank

  • Ergonomically Designed Back Panel

  • 5, 15, or 30 Gallon System (tankless configuration also available)

  • Up to 14 Stainless Steel Distribution Pumps per unit

  • Optional spray cabinet available for lubricating stock prior to entering the die (also facilitates easy lubricant catchment for recycling).

  • Tested in production for Over 100,000,000 Cycles




Pax airless spray lubrication systems are available in several configurations and with a range of available spray assemblies and spray tips:

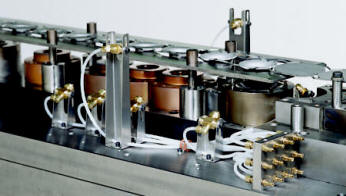

The standard spray assemblies include the nozzle body, selected tip, check valve, retainer nut, quick connect male plug, and 8 feet of 1/4" plastic tubing

Standard Flat spray tip gives a "flat" spray pattern on delivery to stock.

The relocatable magnetic base spray assembly includes 300 lb. pull magnet w/ steel post, stainless steel tube, clamp assembly, nozzle body, selected tip, check valve, retainer nut, quick connect male plug, and 8 feet of 1/4" plastic tubing

Conical spray tip gives a "circular" spray pattern on delivery to stock.

The relocatable flextube magnetic base spray assembly includes 250 lb. pull magnet w/ release lever, flextube segments, nozzle body, selected tip, check valve, retainer nut, quick connect male plug, and 8 feet of 1/4" plastic tubing.

Deflected Flat spray tip gives a modified "Flat" spray pattern on delivery to stock.

For more information about PAX lubricators or to arrange a demonstration, call us or click here. A short video presentation is also available on request.
