DADCO Core Pin Cylinder Application Examples

Optional Cylinder Styles

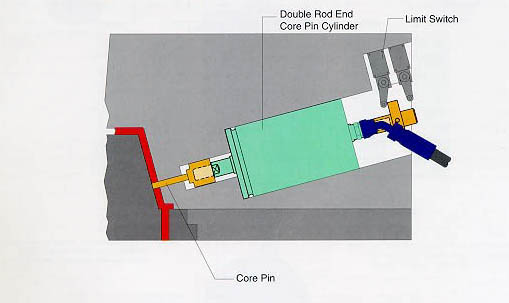

DADCO's Hydraulic Core Pin Cylinder is used to extract the core pin from the formed workpiece. In this application, the double rod end cylinder is used with an adjustable limit switch to achieve the desired cylinder travel within the mold.

Versatile Mounting

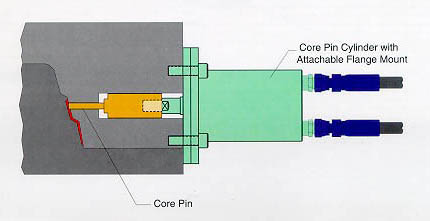

In this application, DADCO's ø40 mm Hydraulic Core Pin Cylinder is mounted outside of the mold with an attachable front flange mount. Four mounting bolts are used to secure the cylinder to the mold.

The compact cylinder also can be installed easily in cored pockets within the mold, as shown above. Installation is fast and simple with two mounting bolts through the full body length of the cylinder.

Back to Core Pin Cylinders
