Since 1942, Jergens Inc. has manufactured "The Standard Components With the Highest Standards." Jergens offers off-the-shelf products that include Workholding Components, Locating Components, Metric Products, Handles, Knobs, and Handwheels, Lifting Products that include Centre-Pull and Side-Pull Styles of Hoist Rings, Toggle Clamps, Power Clamping Systems, Drill Bushings, Maintenance Items, Chuck Jaws, and innovative products like the BallLock™ Mounting System, ElectraLock Clamps, and Staylock® Clamps that help to reduce fixture changeover time.

GW Technologies stocks a select line of Jergens' Workholding components, including:

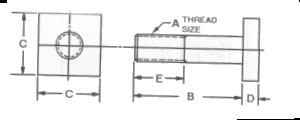

T-Bolts



  • Material: 4140 Forging (140,000 psi) Tensile
  • Finish: Black Oxide
  • Heat Treat: Rc 32-36
  • Thread: 2A-UNC
  • Available in lengths up to 24" and 1 1/4-7 Thread size





Part Thread Size
Number A B C D E
42101 3/8-16 1 1/2 11/16 1/4 3/4
42102 3/8-16 2 11/16 1/4 1 1/4
42103 3/8-16 2 1/2 11/16 1/4 1 1/4
42104 3/8-16 3 11/16 1/4 1 1/2
42105 3/8-16 3 1/2 11/16 1/4 1 1/2
42106 3/8-16 4 11/16 1/4 1 1/2
42301 1/2-13 1 1/2 7/8 1/4 3/4
42302 1/2-13 2 7/8 1/4 1 1/4
42303 1/2-13 2 1/2 7/8 1/4 1 1/4
42304 1/2-13 3 7/8 1/4 1 1/2
42305 1/2-13 3 1/2 7/8 1/4 1 1/2
42306 1/2-13 4 7/8 1/4 2
42307 1/2-13 4 1/2 7/8 1/4 2
42308 1/2-13 5 7/8 1/4 2
42309 1/2-13 5 1/2 7/8 1/4 2
42310 1/2-13 6 7/8 1/4 2
42502 5/8-11 2 1 1/8 3/8 1 1/4
42503 5/8-11 2 1/2 1 1/8 3/8 1 1/4
42504 5/8-11 3 1 1/8 3/8 1 1/2
42505 5/8-11 3 1/2 1 1/8 3/8 1 1/2
42506 5/8-11 4 1 1/8 3/8 1 1/2
42507 5/8-11 5 1 1/8 3/8 1 1/2
42508 5/8-11 6 1 1/8 3/8 1 1/2
42509 5/8-11 8 1 1/8 3/8 3
42510 5/8-11 10 1 1/8 3/8 3
42511 5/8-11 12 1 1/8 3/8 3
42701 3/4-10 2 1/2 1 1/4 1/2 1 1/4
42702 3/4-10 3 1 1/4 1/2 1 1/2
42703 3/4-10 3 1/2 1 1/4 1/2 1 1/2
42704 3/4-10 4 1 1/4 1/2 1 1/2
42705 3/4-10 5 1 1/4 1/2 1 1/2
42706 3/4-10 6 1 1/4 1/2 1 1/2
42707 3/4-10 8 1 1/4 1/2 3
42708 3/4-10 10 1 1/4 1/2 3
42709 3/4-10 12 1 1/4 1/2 3
42901 1-8 4 1 11/16 11/16 2 1/2
42902 1-8 5 1 11/16 11/16 2 1/2
42903 1-8 6 1 11/16 11/16 2 1/2
42911 1-8 7 1 11/16 11/16 2 1/2
42904 1-8 8 1 11/16 11/16 3
42905 1-8 10 1 11/16 11/16 3
42906 1-8 12 1 11/16 11/16 3
42907 1-8 14 1 11/16 11/16 3
43003 1 1/4-7 8 1 7/8 1 7/8 5
43004 1 1/4-7 9 1 7/8 7/8 5
43005 1 1/4-7 10 1 7/8 7/8 5
43006 1 1/4-7 12 1 7/8 7/8 5
43007 1 1/4-7 14 1 7/8 7/8 5
43008 1 1/4-7 16 1 7/8 7/8 5
43009 1 1/4-7 18 1 7/8 7/8 5
43011 1 1/4-7 22 1 7/8 7/8 5
43012 1 1/4-7 24 1 7/8 7/8 5

Back to Top

T-Slot Bolts




Protect your expensive machine table slots with Jergens T-Slot Bolts. The completely finished machined head provides at least 50% more bearing surface under your table slot. T-Slot Bolts outlast T-Bolts in wearability in most applications.
  • Material: 4140 Forging (140,000 psi) Tensile
  • Finish: Black Oxide
  • Heat Treat: Rc 32-36
  • Thread: 2A-UNC
  • Available in lengths up to 24" and 1-8 thread size


Part Thread Size
Number A B C D E F G H
44101 1/2-13 2 7/8 5/16 1 1/2 9/32 1 1/4
44102 1/2-13 2 1/2 7/8 5/16 1 1/4 1/2 9/32 1 1/4
44103 1/2-13 3 7/8 5/16 1 1/2 1/2 9/32 1 1/4
44104 1/2-13 3 1/2 7/8 5/16 1 1/2 1/2 9/32 1 1/4
44105 1/2-13 4 7/8 5/16 1 1/2 1/2 9/32 1 1/4
44106 1/2-13 5 7/8 5/16 2 1/2 9/32 1 1/4
44107 1/2-13 6 7/8 5/16 2 1/2 9/32 1 1/4
44108 1/2-13 8 7/8 5/16 2 1/2 9/32 1 1/4
44301 5/8-11 2 1 1/8 3/8 1 1/4 5/8 3/8 1 1/2
44302 5/8-11 2 1/2 1 1/8 3/8 1 1/4 5/8 3/8 1 1/2
44303 5/8-11 3 1 1/8 3/8 1 1/2 5/8 3/8 1 1/2
44304 5/8-11 3 1/2 1 1/8 3/8 1 1/2 5/8 3/8 1 1/2
44305 5/8-11 4 1 1/8 3/8 1 1/2 5/8 3/8 1 1/2
44306 5/8-11 5 1 1/8 3/8 1 1/2 5/8 3/8 1 1/2
44307 5/8-11 6 1 1/8 3/8 1 1/2 5/8 3/8 1 1/2
44308 5/8-11 8 1 1/8 3/8 3 5/8 3/8 1 1/2
44309 5/8-11 10 1 1/8 3/8 3 5/8 3/8 1 1/2
44310 5/8-11 12 1 1/8 3/8 3 5/8 3/8 1 1/2
44502 3/4-10 2 1/2 1 5/16 7/16 1 1/4 3/4 7/16 1 3/4
44503 3/4-10 3 1 5/16 7/16 1 1/2 3/4 7/16 1 3/4
44504 3/4-10 3 1/2 1 5/16 7/16 1 1/2 3/4 7/16 1 3/4
44505 3/4-10 4 1 5/16 7/16 1 1/2 3/4 7/16 1 3/4
44506 3/4-10 5 1 5/16 7/16 1 1/2 3/4 7/16 1 3/4
44507 3/4-10 6 1 5/16 7/16 1 1/2 3/4 7/16 1 3/4
44508 3/4-10 8 1 5/16 7/16 3 3/4 7/16 1 3/4
44509 3/4-10 10 1 5/16 7/16 3 3/4 7/16 1 3/4
44510 3/4-10 12 1 5/16 7/16 3 3/4 7/16 1 3/4
44701 1-8 3 1/2 1 11/16 1/2 2 1 1/2 2 1/4
44702 1-8 4 1 11/16 1/2 2 1 1/2 2 1/4
44703 1-8 4 1/2 1 11/16 1/2 2 1/2 1 1/2 2 1/4
44704 1-8 5 1 11/16 1/2 2 1/2 1 1/2 2 1/4
44705 1-8 6 1 11/16 1/2 2 1/2 1 1/2 2 1/4
44706 1-8 8 1 11/16 1/2 3 1 1/2 2 1/4
44707 1-8 10 1 11/16 1/2 3 1 1/2 2 1/4
44708 1-8 12 1 11/16 1/2 3 1 1/2 2 1/4


For enquiries, Contact GW Technologies here.
