Industrial
Magnetics, Inc.
is an industry leader in providing both permanent
magnets and electromagnets for work holding, lifting, fixturing, conveying and
magnetic separation. IMI also provides state of the art metal detection systems
for industries such as food stuffs, packaged goods, aggregates and mining.
GW Technologies introduces IMI's
range of materials handling magnets for press rooms.
"Sheet Seeker" Permanent Magnetic Sheet Fanner
IMI's new Sheet Seeker is a breakthrough
in magnetic sheet separation technology. First, the magnetic circuit is lifted
and locked into place for introduction to a stack of steel sheets. Then, once
the materials are in place, the sliding magnet is unlocked and automatically
centres on the top of the stack and fans the sheet stock. As each sheet is
lifted off the stack, the magnet indexes down automatically and will fan to the
bottom of the stack.
Features & Benefits:
Features a powerful rare-earth, automatic indexing, permanent magnetic
circuit
· Up to 60% lighter than standard sheet fanners with the same strength
· Durable stainless steel construction
· Light-weight design and convenient carry handle allows for easy transport
· Minimum height of 9". Custom designs and options available upon request |
 |
 |
|
Permanent
Magnetic and Electromagnetic Sheet Fanners
IMI's
permanent and electromagnetic Sheet Fanners are designed to
separate steel sheet stock. As sheets are placed against the
sheet fanner, the powerful magnetic field automatically forces the sheets apart
and separates them from one another. Manually prying apart sticky, oily sheets
is no longer necessary and die damaging double blanking problems are eliminated. |
|
|
Magnetic Pallet Pin
Fanners
Magnetic Pallet Pin Fanners have dual functionality! Not
only do they act as guides for aligning parts as they come
off the blanking lines, but also as magnetic sheet fanners
that fan or separate multiple sized or shaped blanks for the
manual or automatic loading of a press.
Pin Fanners stay right on the pallet, from the blanking line
to the press, without any extra set up! Multiple magnet
positions ensure direct contact with the blank for maximum
fanning ability, and since they are mounted directly to the
pallet, theres less down time and maintenance on the line.
Pin fanners function as both pallet pins & sheet
fanners all in one unit
Go from blanking line to press line with no
extra sheet fanner set-up
Multiple fanning positions
Pin fanners require less maintenance time on
the line
Ensured contact with blank to maximize
fanner performance
Works with multiple sized or shaped blanks
Reversing active fanner area allows for easy removal of
the fanner from the
stack and faster changeover of materials

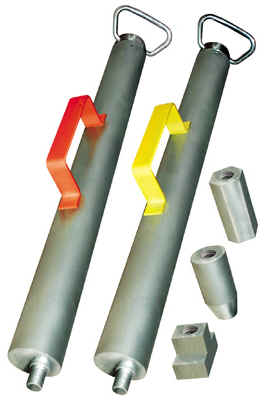

In response to extensive
field use, IMI has created a second-generation, modularized
unit, where the base of the Pin Fanner now has a standard,
threaded rod that accepts either a "Hex", "Round", "T-Slot"
or custom designed mounting configuration. This allows
operators to use the same magnetic Pin Fanners on multiple
styles of pallets, by simply switching out the threaded
mounting piece.
