DADCO Nitrogen Gas Spring Dimensional Drawings:

LJ (90.7) Series

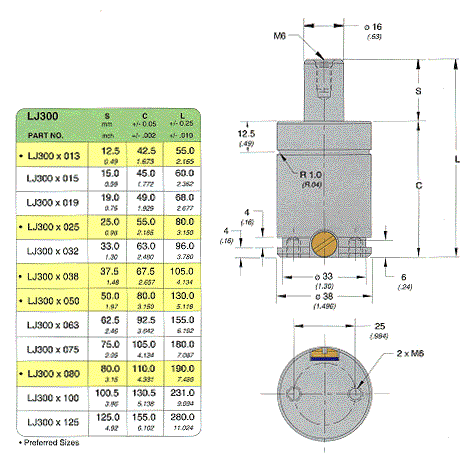

LJ300


Return to Nitrogen Gas Springs

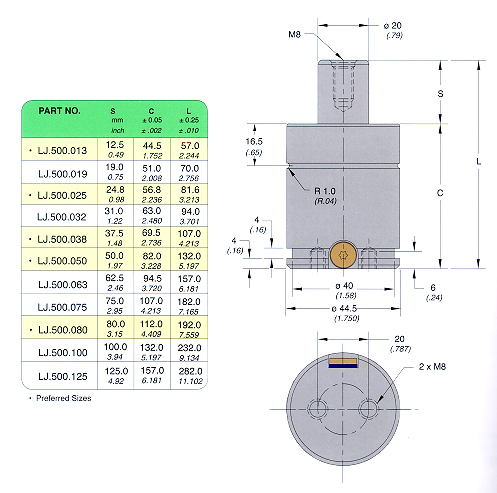

LJ500


Return to Nitrogen Gas Springs

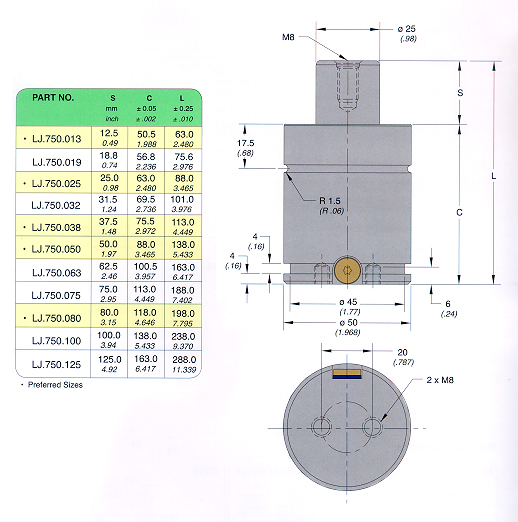

LJ750


Return to Nitrogen Gas Springs
