DADCO Stock Lifters - Application Examples

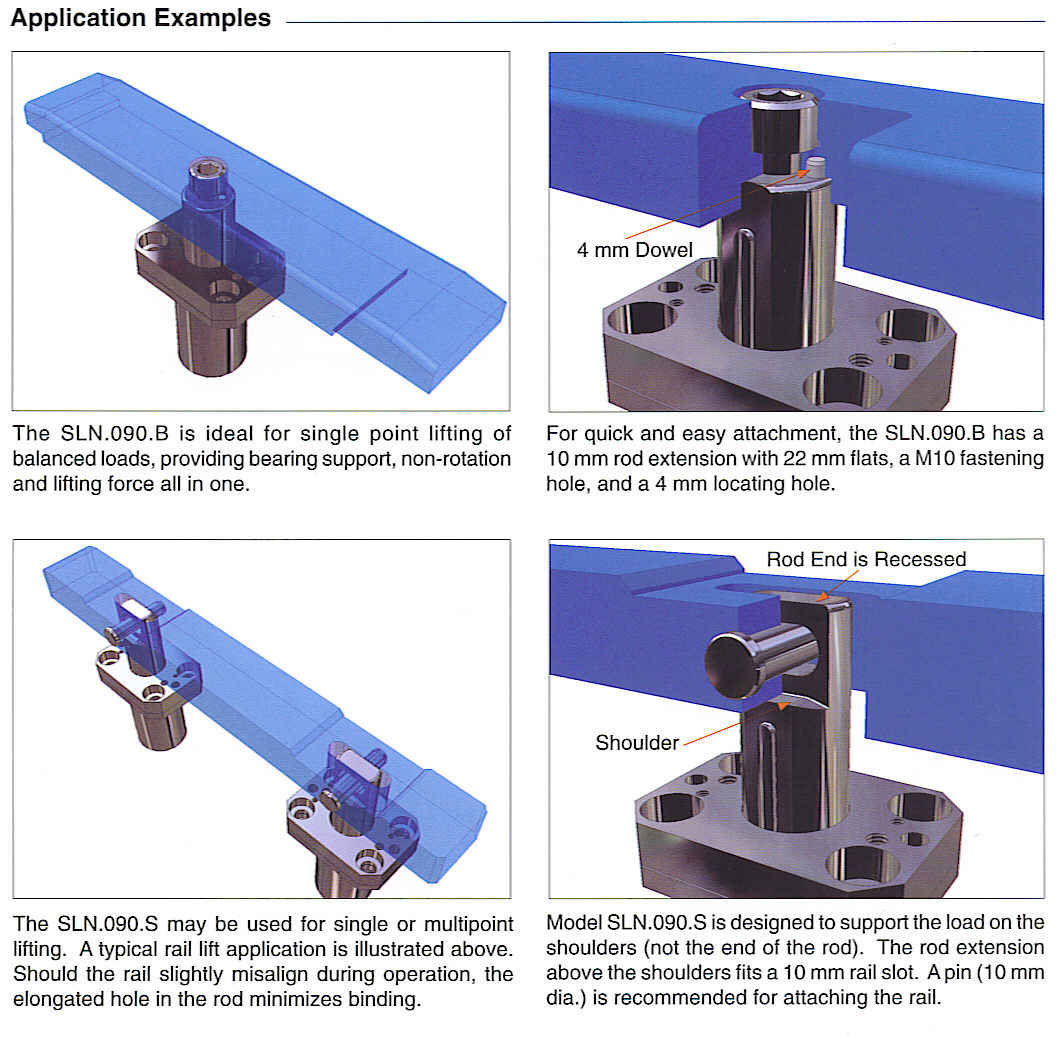

SLN 090:

Click here to return to Stock Lifters

SLN 300:

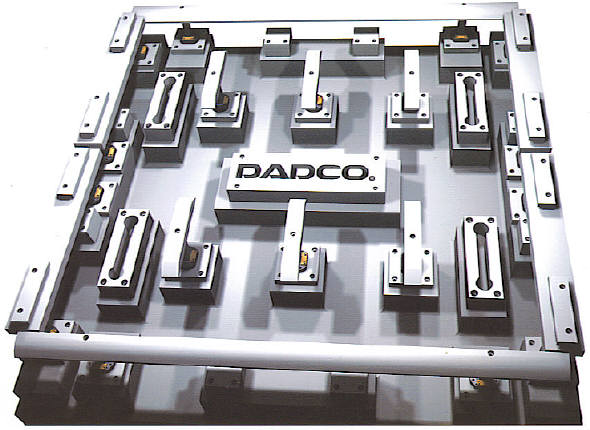

The illustration below shows eighteen SLN.300's as support lifters in a progressive stamping tool:

Click here to return to Stock Lifters

SLC 800:

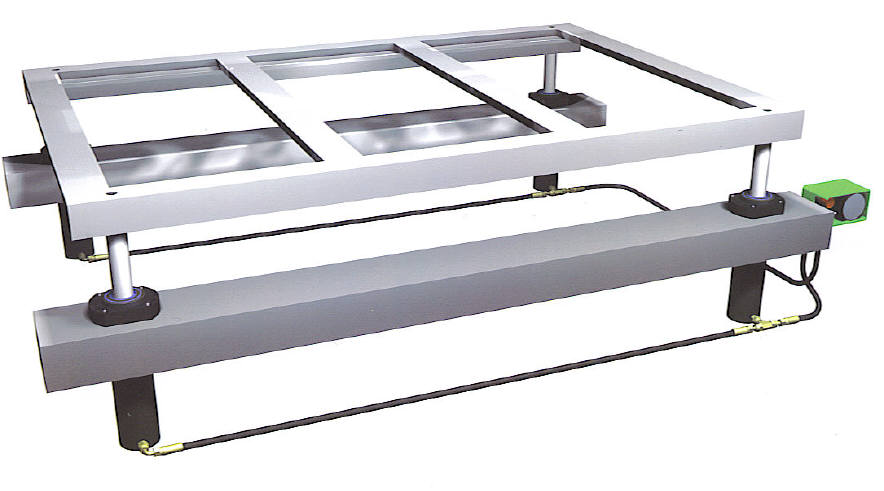

The following shows four SLC.800's in a linked system returning and supporting a strip guide and lifting frame:

Click here to return to Stock Lifters
