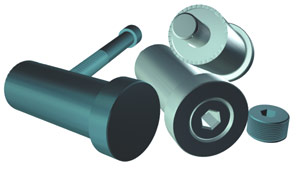

Lamina NAAMS Spool-Type Pad Retainers

Locking, reversed and metric spool-type pad retainers are available. Lamina spool-type pad retainers feature black oxide treatment and load ratings up to 10,000 lbs. Metric spool type pad retainers are made to the North American Automotive Metric Standard (NAAMS).

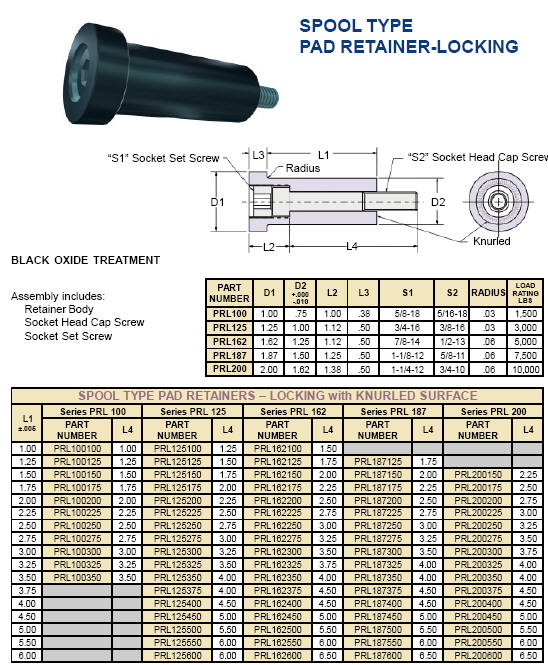

Spool Type Pad Retainers

Specifications:



For enquiries, Contact GW Technologies here.
