Since 1942, Jergens Inc. has manufactured "The Standard Components With the Highest Standards." Jergens offers off-the-shelf products that include Workholding Components, Locating Components, Metric Products, Handles, Knobs, and Handwheels, Lifting Products that include Centre-Pull and Side-Pull Styles of Hoist Rings, Toggle Clamps, Power Clamping Systems, Drill Bushings, Maintenance Items, Chuck Jaws, and innovative products like the BallLock™ Mounting System, ElectraLock Clamps, and Staylock® Clamps that help to reduce fixture changeover time.

GW Technologies stocks a select line of Jergens' Workholding components, including:

  • Forged Adjustable Clamps;
  • Heavy-Duty Washers;
  • T-Bolts;
  • T-Slot Bolts; and
  • Quik-Lok Pins

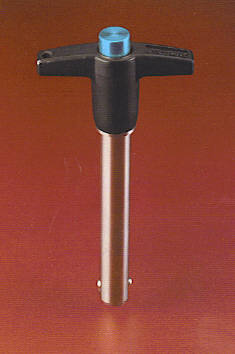

The T-Handle Kwik-Lok Pin provides a firm, even grip for smooth, comfortable operation
  • Handle is black cast aluminium and button is blue anodised aluminium
  • available in steel and stainless steel body
  • Includes hole for easy attachment of optional lanyard or ring

T-Handle dimensions here

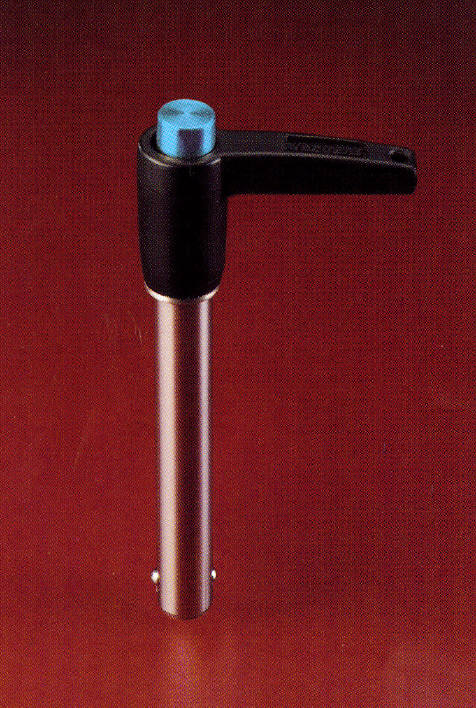

The L-Handle Kwik-Lok Pin provides a firm, grip for applications where a T-Handle will not fit

  • Handle is black cast aluminium and button is blue anodised aluminium
  • available in steel and stainless steel body
  • Includes hole for easy attachment of optional lanyard or ring

L-Handle dimensions here

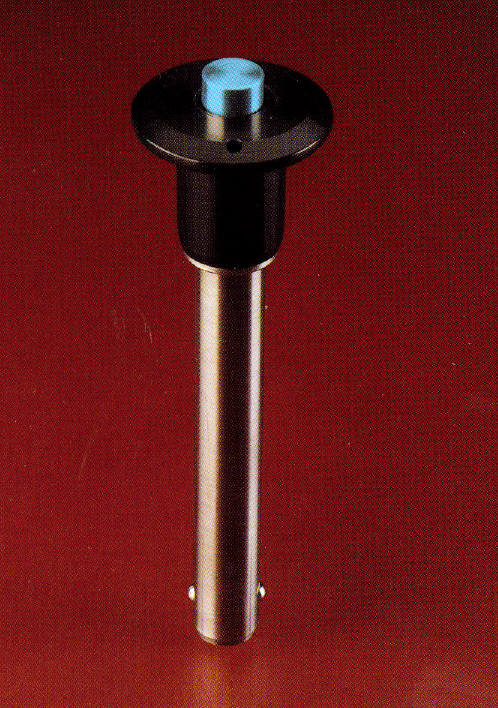

The Button-Handle Kwik-Lok Pin is ideal for applications that have limited space around the handle.

  • Lightweight black anodised aluminium handle with blue anodised aluminium button
  • Available in steel and stainless steel body
  • Includes hole for easy attachment of optional lanyard or ring

Button-Handle dimensions here

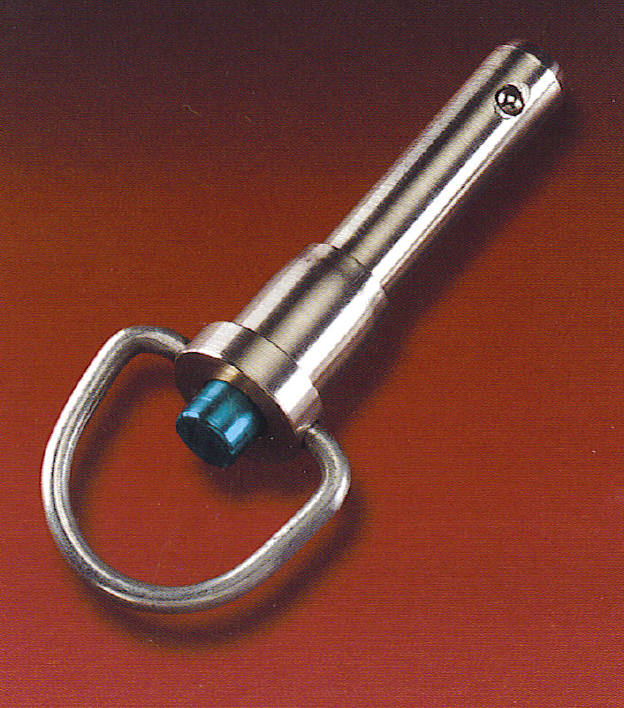

 The Ring-Handle Kwik-Lok Pin is designed for applications that require small clearance area around the pin.
  • Stainless steel handle for tough environments with blue anodised aluminium button
  • Shank available in steel and stainless steel body
  • Ring allows for easy attachment  of optional lanyard

Ring-Handle dimensions here

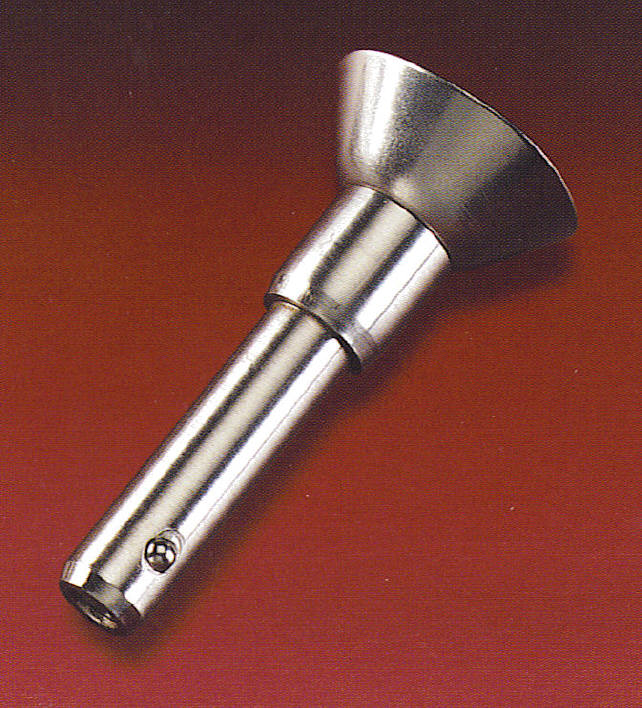

The Recessed Button-Handle Kwik-Lok Pin is design helps prevent accidental actuation of the pin.
  • Handle is stainless steel with blue anodised aluminium button
  • Available in steel and stainless steel body
  • Includes hole for easy attachment of optional lanyard or ring

Recessed-Button-Handle dimensions here

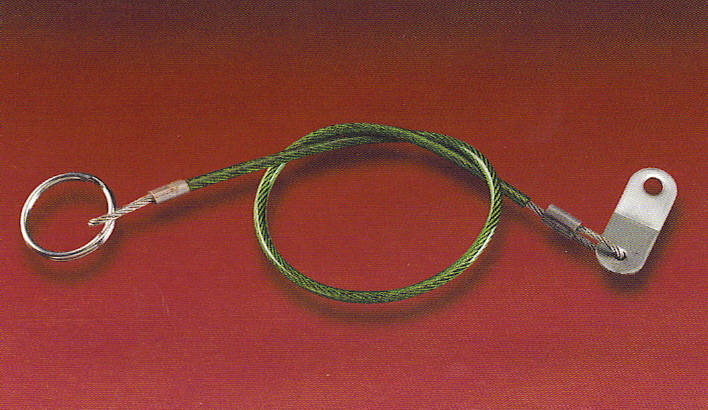

The Optional Lanyard secures the Kwik-Lok pin to its workpiece and is available in the following variants:

  • 1-loop or 2-loops
  • Round tab, Square tab or No tab
  • Tabs in aluminium or stainless steel
  • Lengths 4" - 24"
  • Optional ring termination

Lanyard dimensions here





For enquiries, Contact GW Technologies here.
