Since 1942, Jergens Inc. has manufactured "The Standard Components With the Highest Standards." Jergens offers off-the-shelf products that include Work holding Components, Locating Components, Metric Products, Handles, Knobs, and Hand wheels, Lifting Products that include Centre-Pull and Side-Pull Styles of Hoist Rings, Toggle Clamps, Power Clamping Systems, Drill Bushings, Maintenance Items, Chuck Jaws, and innovative products like the BallLock™ Mounting System, ElectraLock Clamps, and Staylock® Clamps that help to reduce fixture changeover time.

GW Technologies stocks a select line of Jergens' Work holding components, including:

Forged Adjustable Clamp (Inch & Metric Sizes)




Jergens Forged Adjustable Clamps employ an integrated swivel bushing to automatically compensate for clamping height changes within their clamping ranges. Fitting is easy and fast  - alleviating the need for clumsy packing and shimming to achieve perfect clamping height. Clamp heights range from 0-3.5"  (see chart below for full specs). The swivel bushing is permanently mounted in the clamp which alleviates lost or missing parts. A brass heel plate is fitted as standard to protect the machine table.
  • Material: 1137 Forged Steel, Heat Treated
  • Finish: Black Oxide
  • One Piece Construction
  • Versatile Clamping Height

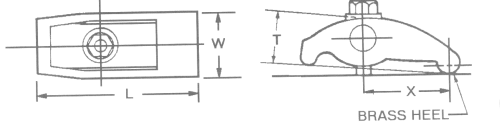

Part Bolt       Bolt Clamping
Number Size L W T Size Range X
19101 1/2 4 1/4 1 3/4 1 1/2 1/2 0-2 2 1/2
19102 5/8 5 2 1 5/8 5/8 0-2 3/8 3
19103 3/4 6 1/4 2 1/2 1 3/4 3/4 0-2 3/4 3 3/4
19103 7/8-1 7 3 2 3/8 7/8-1 0-3 1/2 4 1/4
  METRIC
19101 M12 106 44 38 M12 0-51 63
19102 M16 125 50 41 M16 0-60 75
19103 M20 159 63 44 M20 0-70 95
19104 M24 175 75 60 M24 0-90 108



   Unless otherwise stated, English units are inches (in) and pounds (lbs) and Metric units are millimetres (mm) and kilograms (kg).


Washers, Heavy Duty Flat

Product Photograph
 		 Product Parametric View


An ideal companion to the Forged adjustable clamps, these hardened and ground heavy duty washers are made from high carbon through - hardened steel which makes them up to 50% stronger than standard heavy duty washers. Also more fracture resistant under heavy loads.
  • Material: High Carbon Steel
  • Finish: Black Oxide
  • Heat Treat: Rc 40-45 (Through Hardened)
  • Flat and parallel within .005 (.01mm)

PART       BOLT WT (PCS)
NUMBER A B C SIZE 10 PCS
31960 1-1/2 17/32 7/32 1/2 1.00
31961 1-1/2 21/32 7/32 5/8 0.88
31962 1-7/8 25/32 1/4 3/4 1.61
31963 2-1/8 29/32 1/4 7/8 2.31
31964 2-1/2 1-1/16 1/4 1 3.56
31965 2-1/2 1-5/16 1/4 1-1/4 3.98
31966 2-3/4 1-9/16 1/4 1-1/2 4.20
  METRIC
31961 38 17 5.5 16 0.40
31962 48 20 6.5 18 0.73
31963 54 23 6.5 22 1.05
31964 64 27 6.5 25 1.62

For enquiries, Contact GW Technologies here.
