DADCO Nitrogen Gas Spring Dimensional Drawings:

UltraForce (U.0175, U.0400, U.0600, U.1200, U.1600, U.2600 & U.9600) series

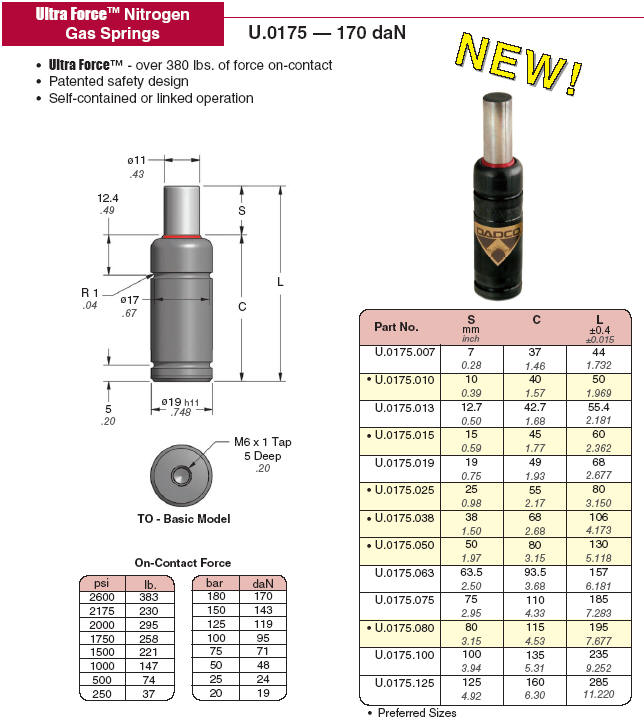

U.0175

Return to Nitrogen Gas Springs

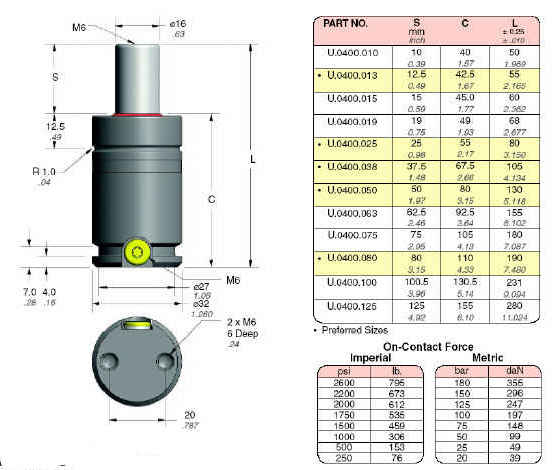

U.0400

Return to Nitrogen Gas Springs

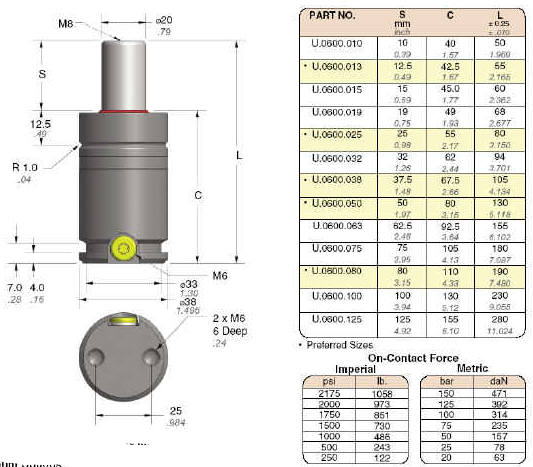

U.0600

Return to Nitrogen Gas Springs

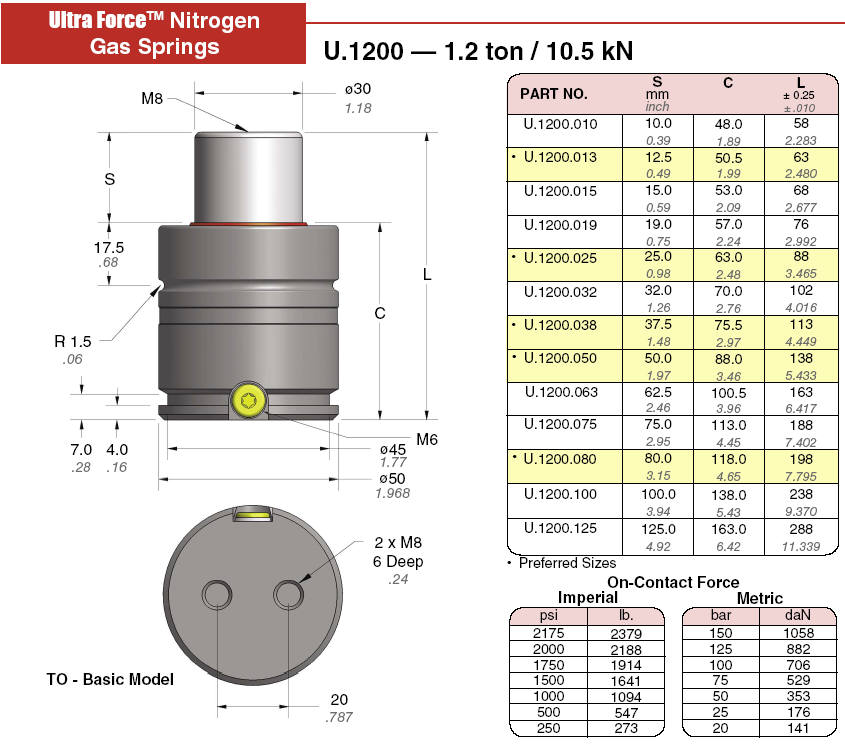

U.1200

Return to Nitrogen Gas Springs

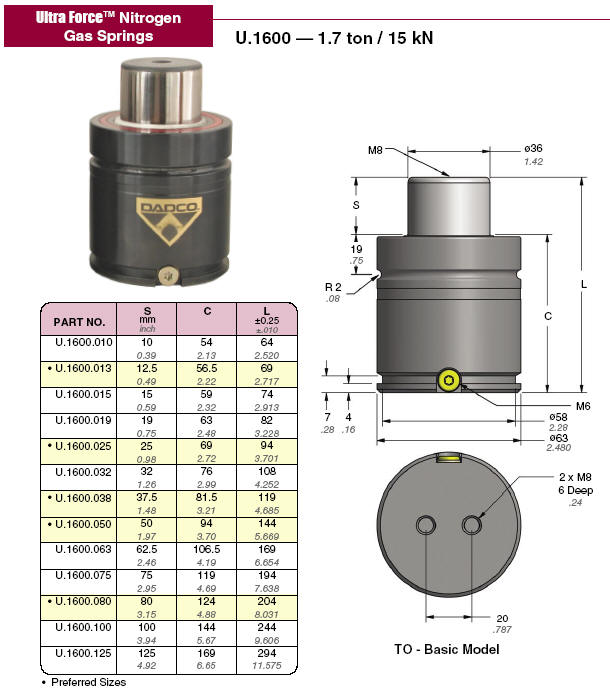

U.1600

Return to Nitrogen Gas Springs

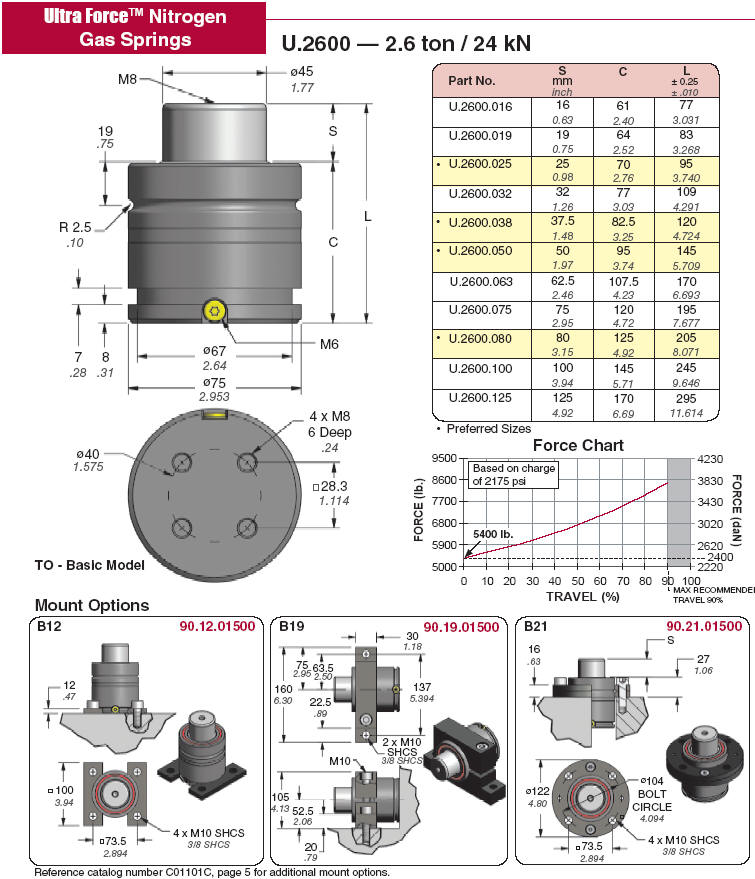

U.2600

Return to Nitrogen Gas Springs

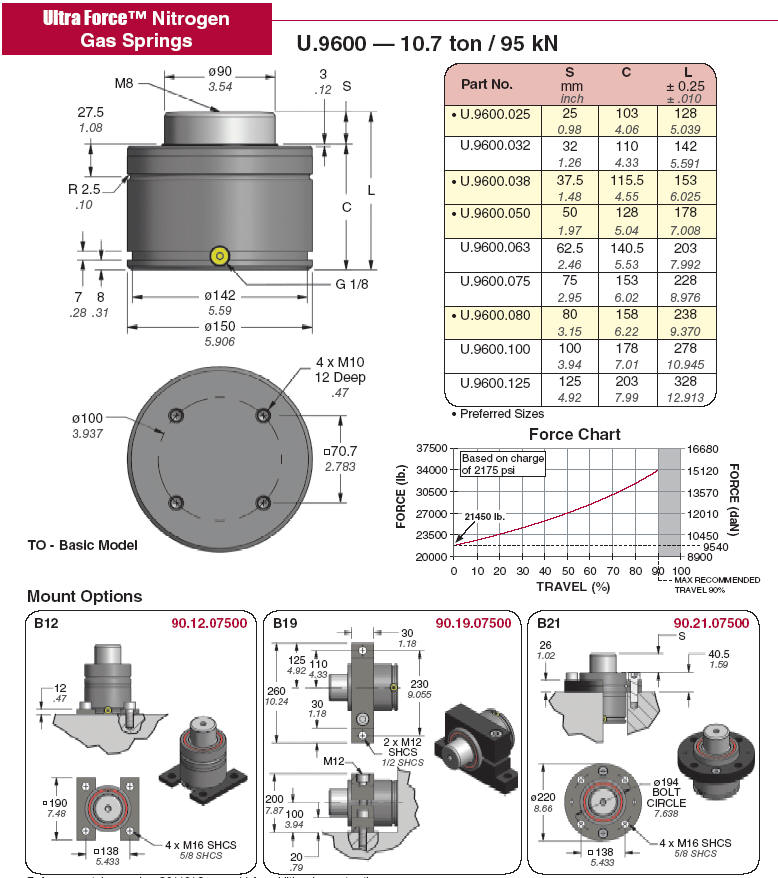

U.9600

Return to Nitrogen Gas Springs
