DADCO Nitrogen Gas Spring Dimensional Drawings:

L (90.3) series

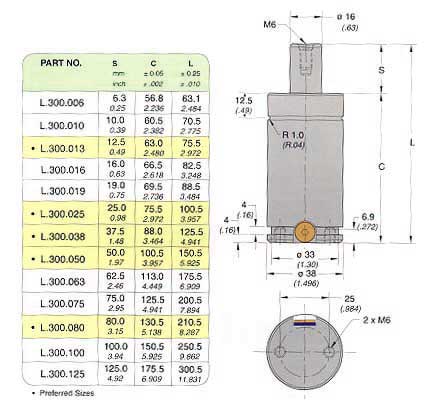

L300


Return to Nitrogen Gas Springs

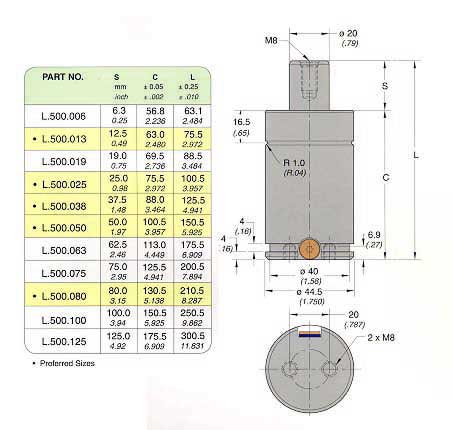

L500


Return to Nitrogen Gas Springs

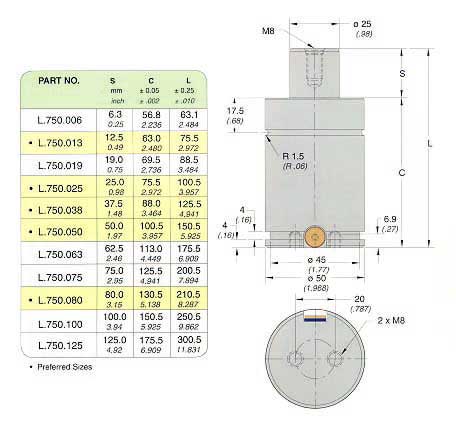

L750


Return to Nitrogen Gas Springs
