DADCO Nitrogen Gas Spring Dimensional Drawings:

90.10 series

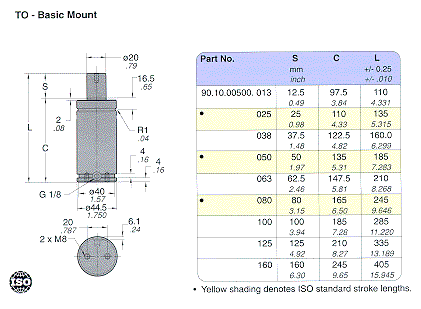

90.10.00500


Return to Nitrogen Gas Springs

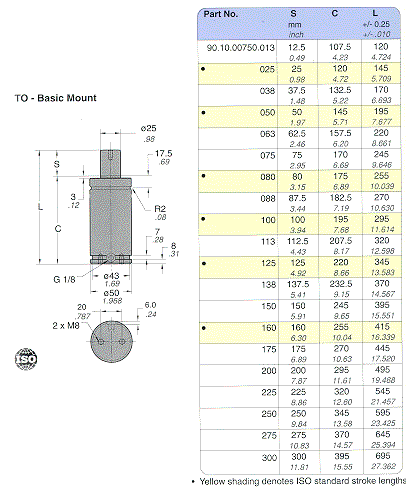

90.10.00750


Return to Nitrogen Gas Springs

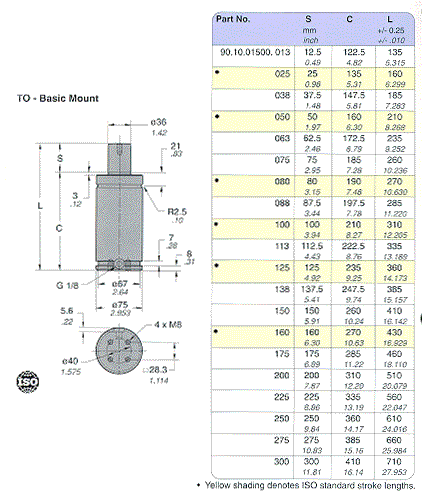

90.10.01500


Return to Nitrogen Gas Springs

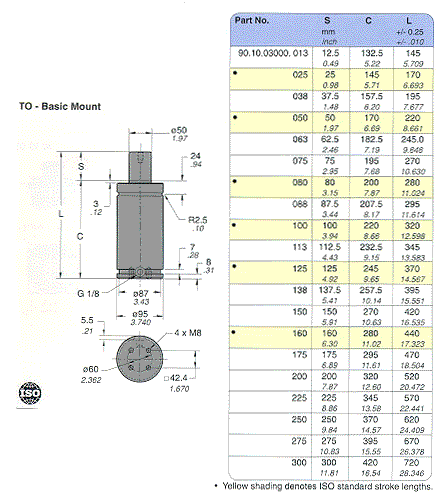

90.10.03000


Return to Nitrogen Gas Springs

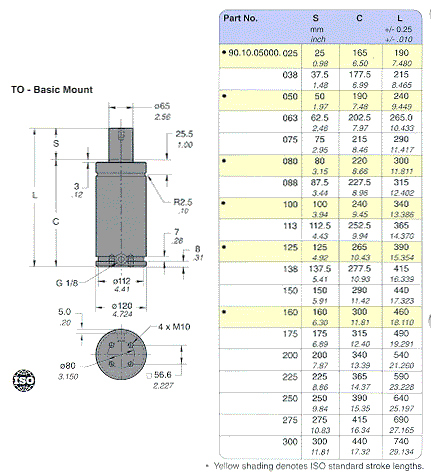

90.10.05000


Return to Nitrogen Gas Springs

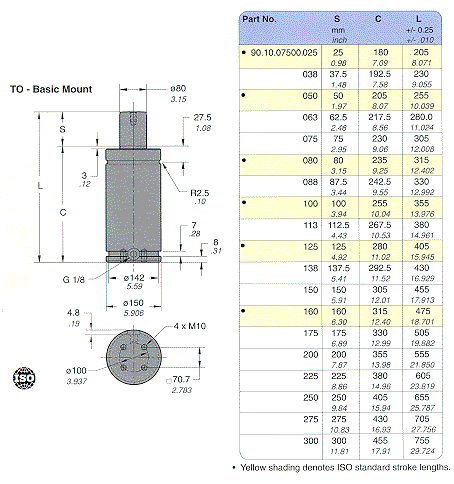

90.10.07500


Return to Nitrogen Gas Springs

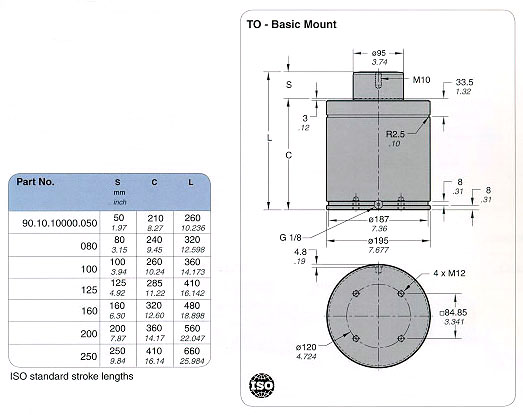

90.10.10000

Return to Nitrogen Gas Springs
